Description

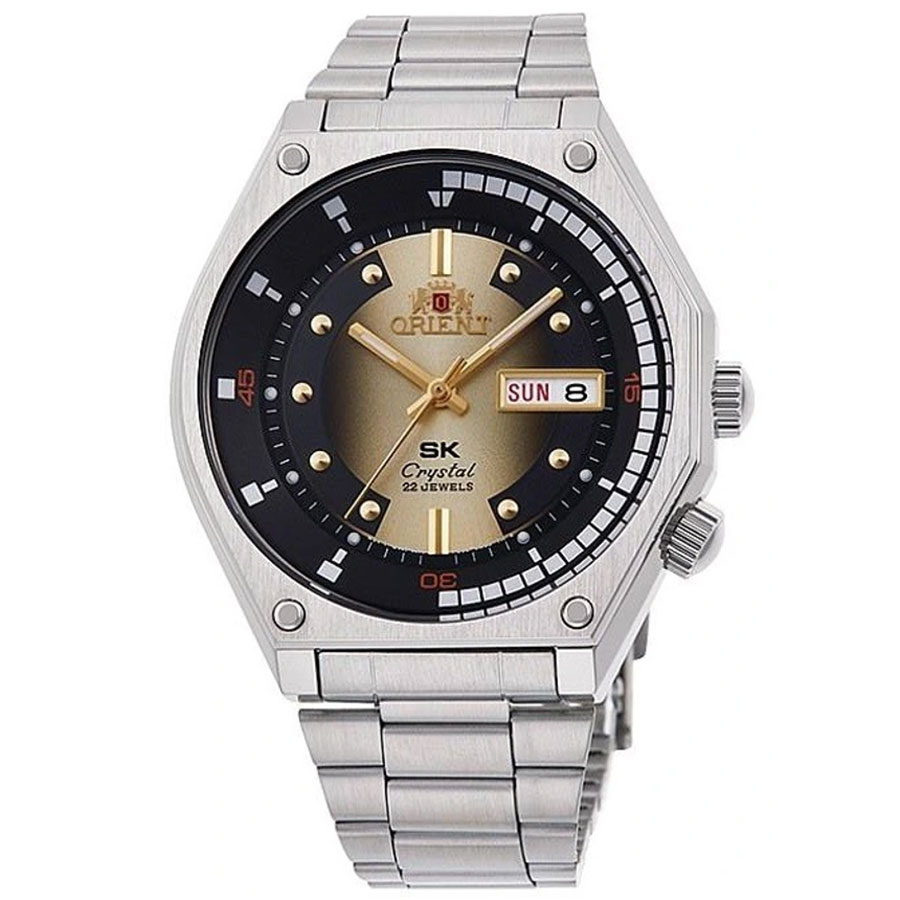

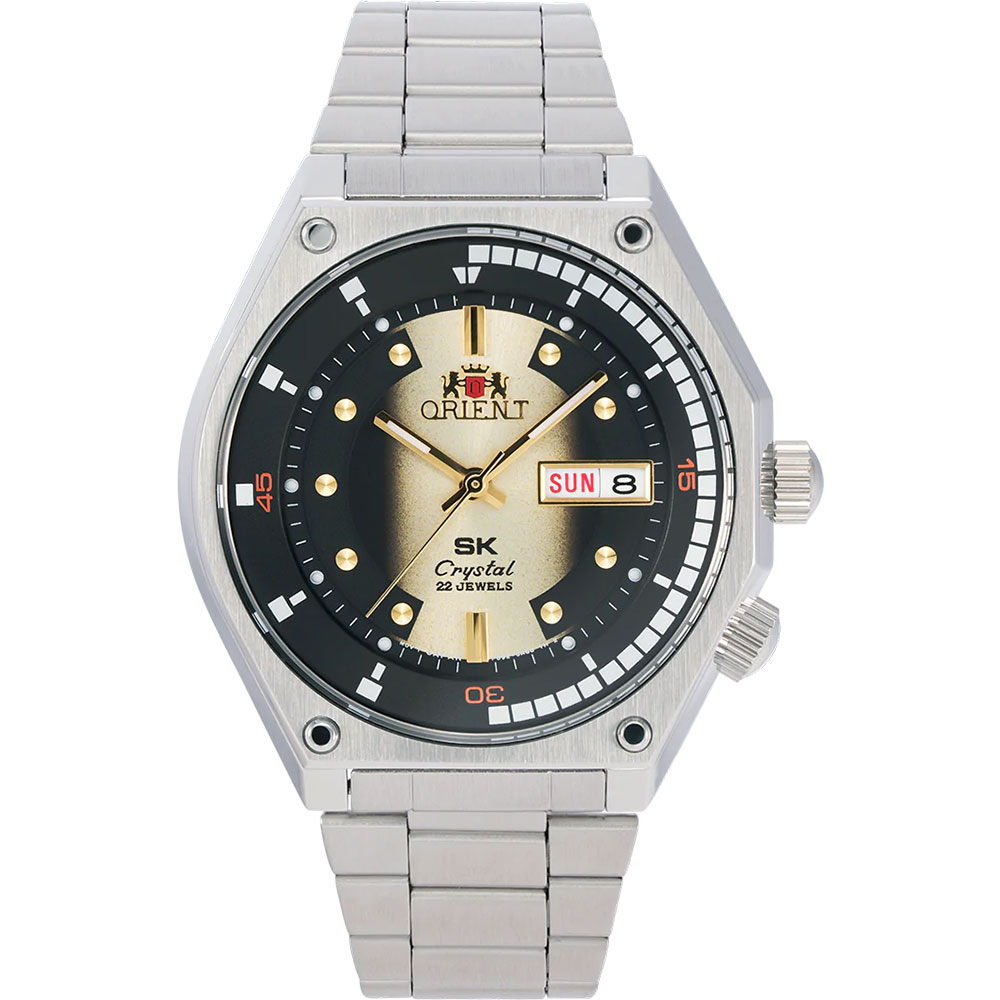

ORIENT RA-AA0B01G Specifications
| Features |
| ||
|---|---|---|---|
| Driving system | Automatic features manual hand winding movement | ||
| Caliber number | F6922 | ||
| Case material | Stainless steel | ||

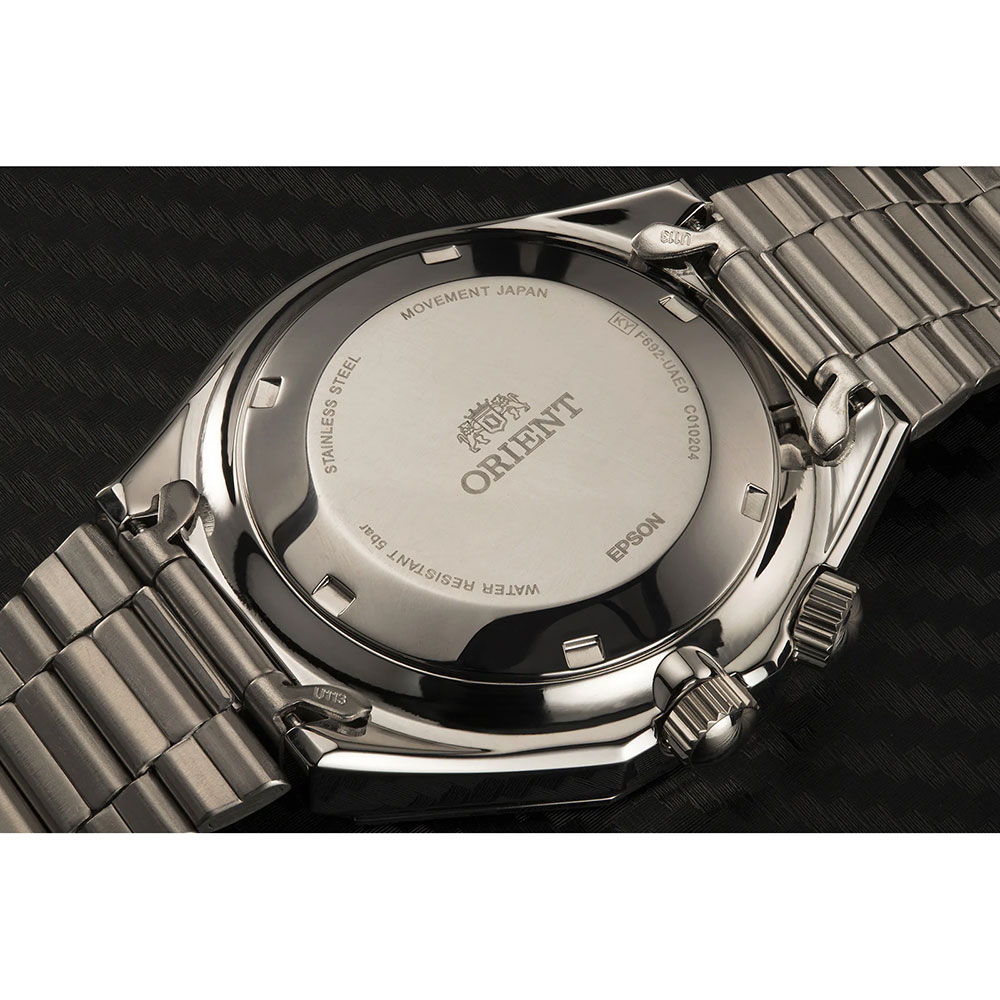

| Case back | Solid screw | ||
| Case color | Silver tone | ||
| Band type | Bracelet | ||
| Band material | Stainless steel | ||
| Band color | Silver tone | ||
| Band width | 18 mm | ||

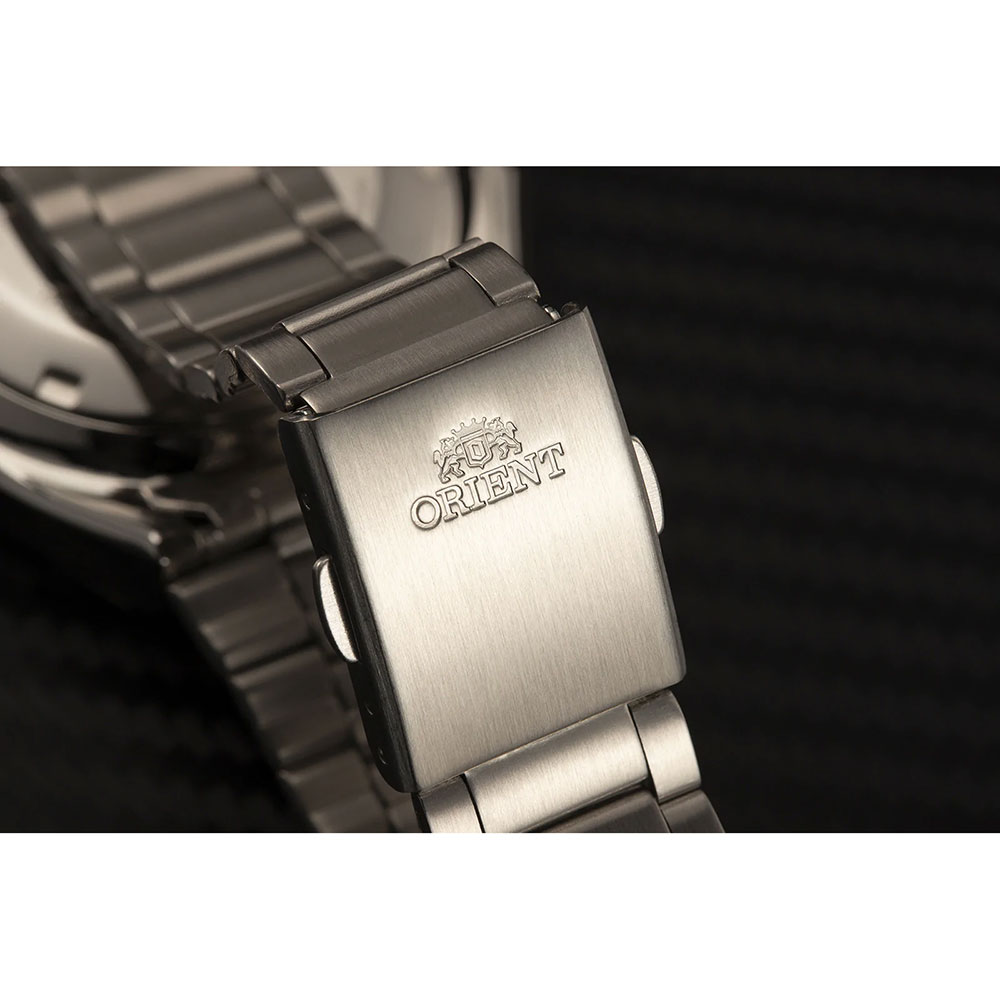

| Clasp | Fold over with push button safety | ||

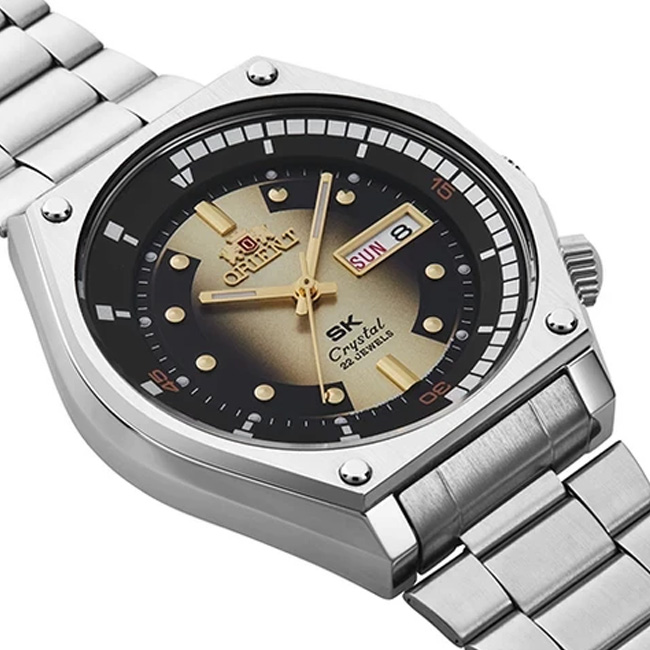

| Dial color | Black and champagne gold tone | ||
| Glass material | Mineral crystal | ||
| Hands | Gold tone hour, minute, second hand | ||
| Dial markers | Gold tone dots indexes with batons indexes at 6 and 12 o’clock positions | ||
| Second markers | Minutes markers around the outer rim | ||
| Luminous | Hands and hour markers | ||
| Bezel | Fixed outer silver tone stainless steel and bi-directional rotating inner per 15 minutes scale | ||
| Crown | Push/pull at 3 and 4 o’clock position for rotating inner ring bezel | ||
| Function | Day, date, hour, minute, 24-hour time display, second hand halt mechanism | ||
| Accuracy | -15 to +25 seconds / day | ||
| Drive duration | Power reserve approximately 40 hours | ||
| Vibration | 21,600 vibrations / hour | ||
| Water resistance | 5 bar water resistance (50 meters / 165 feet) | ||
| Size | Diameter 41.7 mm x Thickness 12.6 mm | ||
| Lug to lug | 46 mm | ||
| Weight | 124 g |

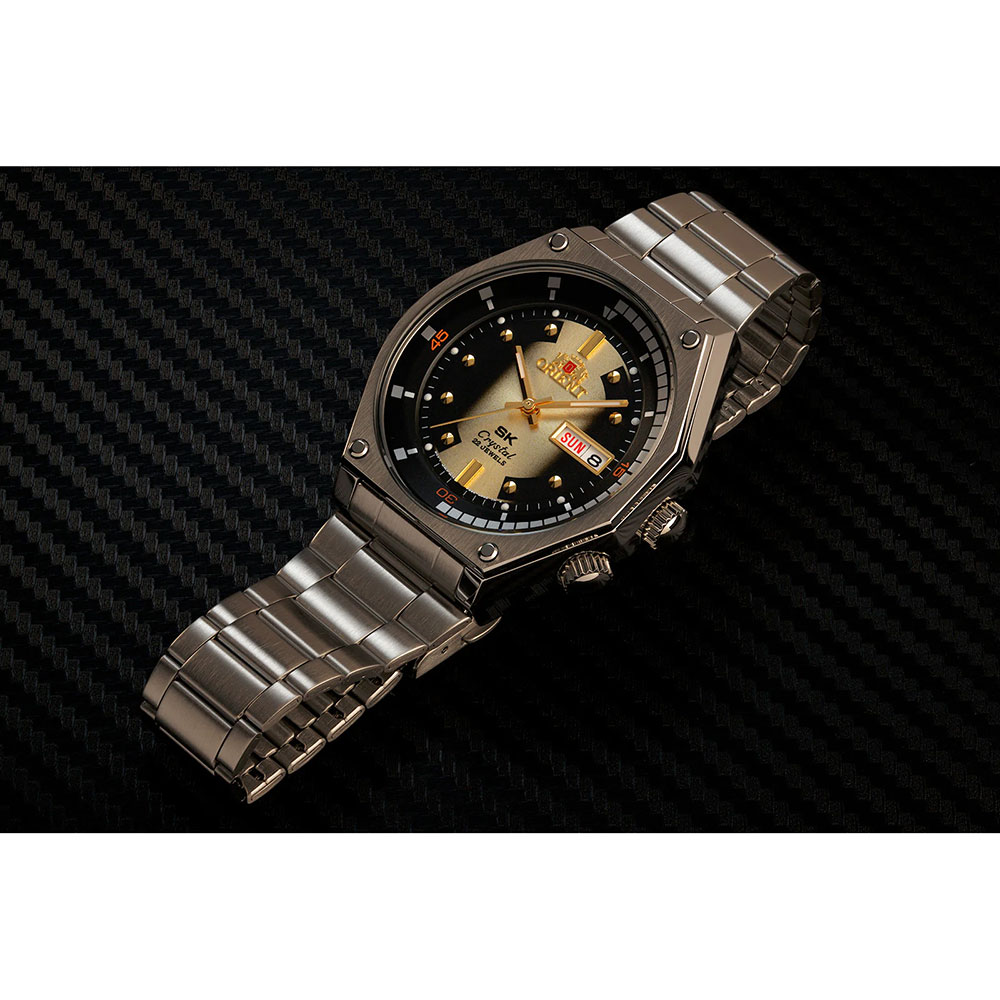

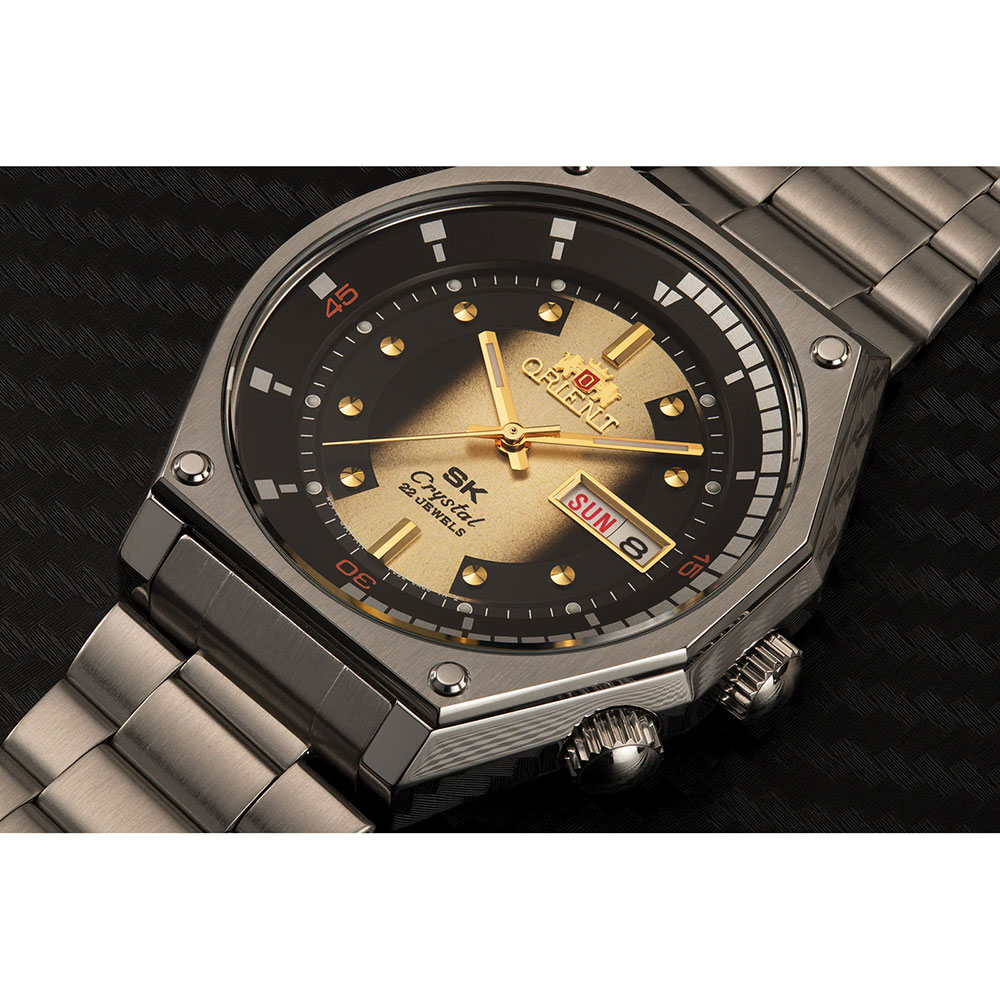

ORIENT RA-AA0B01G Features

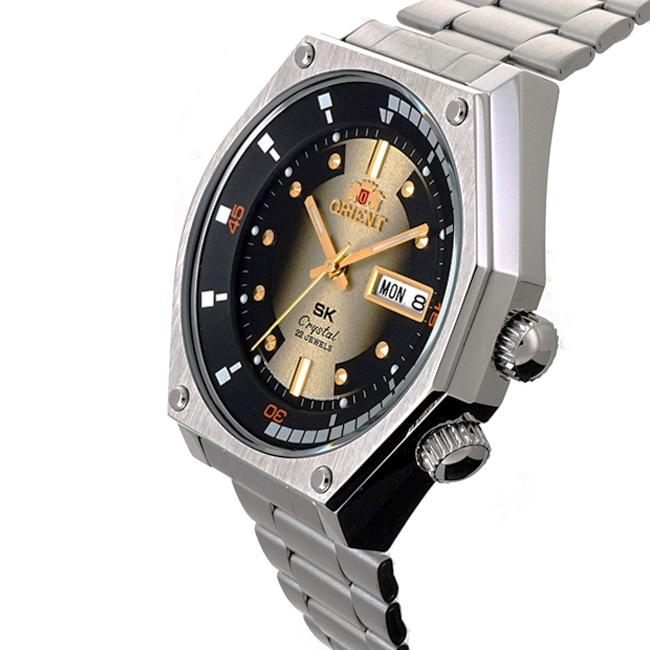

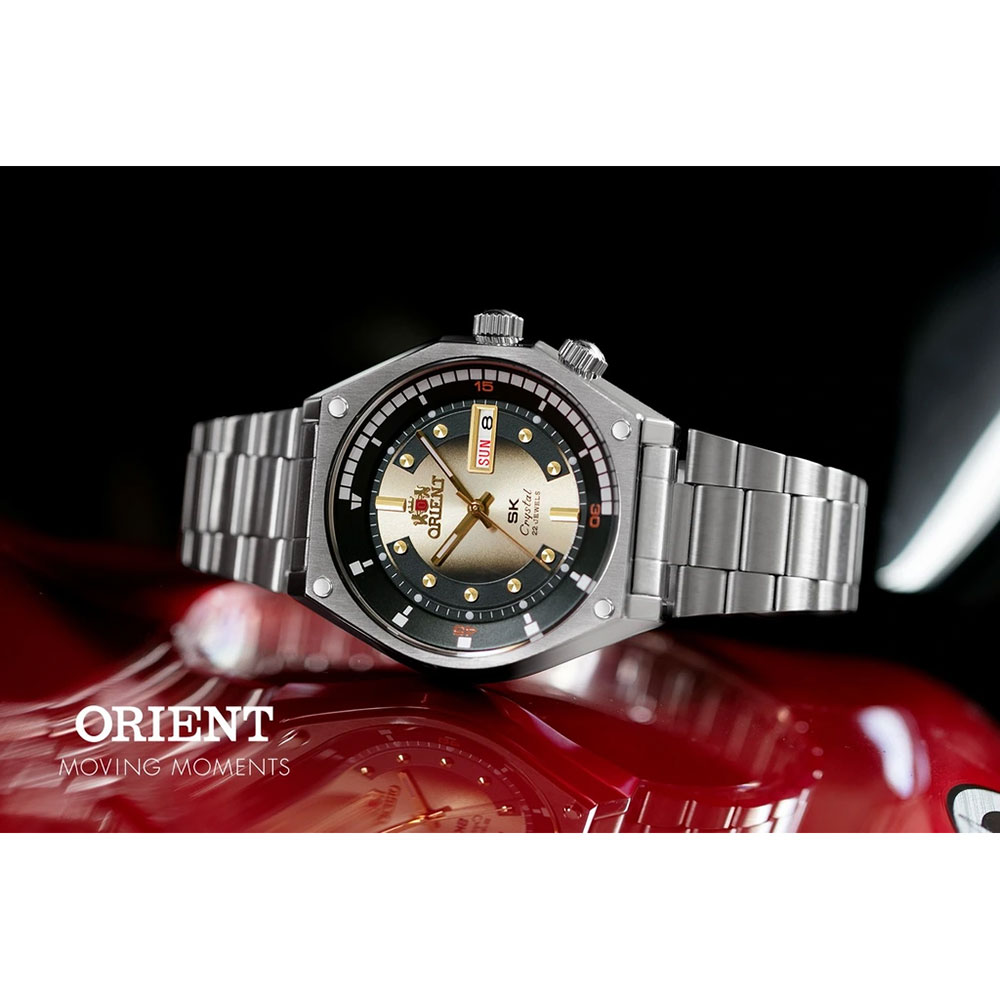

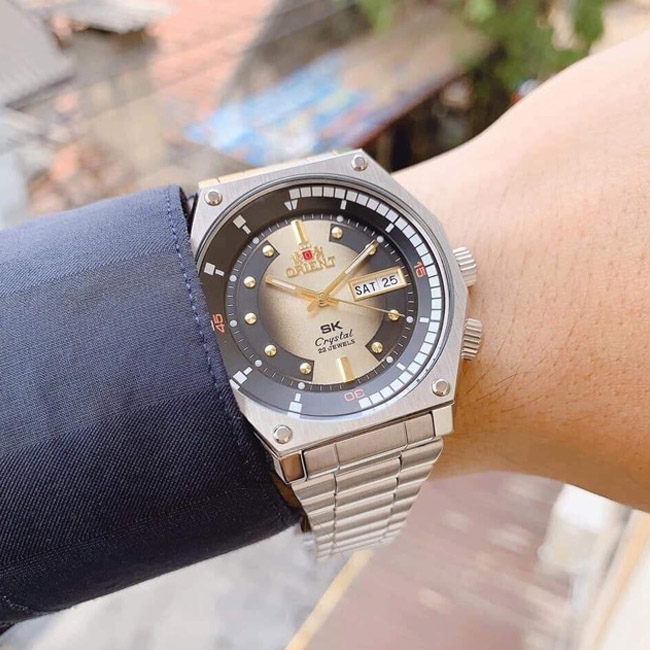

This is revival of past (1970s) very popular diver style model “469135A”. Characteristic case shape with 4 nailed pins, rotating bezel, logos, and wrapped metal band…every detail is carefully revived. It is ORIENT 41.7mm Sports mechanical watch with day and dates. An attractive see-through case back enhances the refined aesthetic. The refined timepiece supports water resistance of 50 meters.
- 22 jewels
- Case size (3H-9H): 41.7mm
- Case size (12H-6H): 46mm
- Stainless steel case
- Water resistance 50m
- Day and date display
- Solid screw case back
Click here to download Service manual for Orient RA-AA0B01G.
About ORIENT RA-AA0B01G
Orient Watch is a Japanese watch brand owned by Seiko Epson. Established as an independent company in 1950, it became a functional subsidiary of Epson in 2009 before being fully integrated into the company in 2017.
Until it was absorbed into Epson, the Orient Watch Company had primarily marketed mechanical watches (self-winding & hand-winding), but also produced quartz, light-powered (solar) and radio-controlled models. Outside of the main business, the company produced some moving parts and electronic components that were then assembled into Seiko Epson’s electronic devices.
Currently, Akita Epson Corporation (formally Akita Orient Precision Instruments Co., Ltd.), a group company of Epson, manufactures all of the Orient movements in-house in Yuzawa, Akita, Japan.
